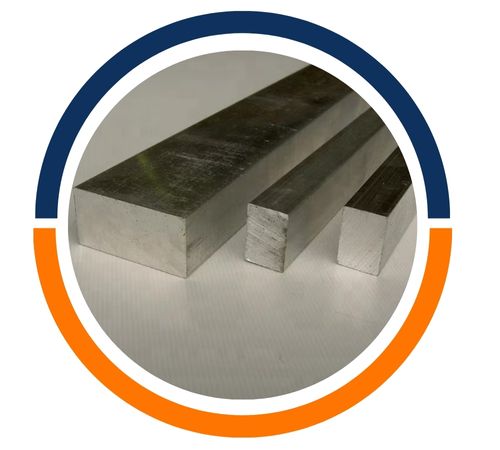

Ali Aluminium, based in Safat, Kuwait, has built a reputation for supplying top-tier aluminium products you can count on. Our Aluminium 1050 Bars are a prime example of this commitment, designed to meet the demanding needs of various industries. Known for their excellent workability and high corrosion resistance, these bars are a fundamental component in both structural and non-structural applications. We take pride in providing a reliable supply of this essential material, ensuring your projects are built on a foundation of quality and durability you can trust.
The composition of these bars is 99.5% aluminium, which is what gives them their notable characteristics. This high purity level results in excellent corrosion resistance and a notably high resistance to chemical attacks. Mechanically, they offer good formability and can be easily welded, making them a versatile choice for fabricators. While they don’t harden significantly through heat treatment, their strength can be increased through cold working, offering a good balance of softness for forming and adequate strength for many applications.
Standards : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper : O
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 1000-6000
Diameter : 6-150
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
Ali Aluminium based in Safat, Kuwait is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Diameter | Weight |
|---|---|
| 6 mm | 0,076 Kg/m |
| 7 mm | 0,104 Kg/m |
| 8 mm | 0,136 Kg/m |
| 9 mm | 0,172 Kg/m |
| 9,5 mm | 0,191 Kg/m |
| 10 mm | 0,212 Kg/m |
| 11 mm | 0,257 Kg/m |
| 12 mm | 0,305 Kg/m |
| 12,5 mm | 0,331 Kg/m |
| 13 mm | 0,358 Kg/m |
| 14 mm | 0,416 Kg/m |
| 16 mm | 0,543 Kg/m |
| 16,5 mm | 0,577 Kg/m |
| 18 mm | 0,687 Kg/m |
| 19 mm | 0,766 Kg/m |
| 20 mm | 0,848 Kg/m |
| 22 mm | 1,026 Kg/m |
| 25 mm | 1,325 Kg/m |
| 28 mm | 1,663 Kg/m |
| 30 mm | 1,909 Kg/m |
| 31 mm | 2,038 Kg/m |
| 32 mm | 2,171 Kg/m |
| 35 mm | 2,598 Kg/m |
| 38 mm | 3,062 Kg/m |
| 40 mm | 3,393 Kg/m |
| 45 mm | 4,294 Kg/m |
| 50 mm | 5,301 Kg/m |
| 55 mm | 6,415 Kg/m |
| 60 mm | 7,634 Kg/m |
| 65 mm | 8,959 Kg/m |
| 70 mm | 10,391 Kg/m |
| 75 mm | 11,928 Kg/m |
| 80 mm | 13,572 Kg/m |
| 90 mm | 17,177 Kg/m |
| 100 mm | 21,206 Kg/m |
| 105 mm | 23,379 Kg/m |
| 110 mm | 25,659 Kg/m |
| 120 mm | 30,536 Kg/m |
| 127 mm | 34,203 Kg/m |
| 130 mm | 35,838 Kg/m |
| 140 mm | 41,563 Kg/m |
| 150 mm | 47,713 Kg/m |
| 180 mm | 68,707 Kg/m |
| 200 mm | 84,823 Kg/m |
Yes, we offer custom sizes for Aluminium 1050 Bars to meet specific project needs. Our team at Ali Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@alialuminium.com
You’ll find Aluminium 1050 Bars hard at work in many everyday settings. Their excellent corrosion resistance makes them perfect for chemical plant equipment, food industry containers, and marine applications. They are commonly used for signage, decorative trims, and architectural panels where a sleek, metallic finish is desired. Furthermore, their high electrical conductivity lends them to bus bar assemblies and various electrical components. Essentially, wherever a non-toxic, lightweight, and reliably strong material is needed, these bars prove to be an excellent and cost-effective solution.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
